*50KGF,490N,110Lbf
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
Product Description
The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries. For the push and pull load test, plug and unplug force test and destructive test etc.
Product Feature
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.

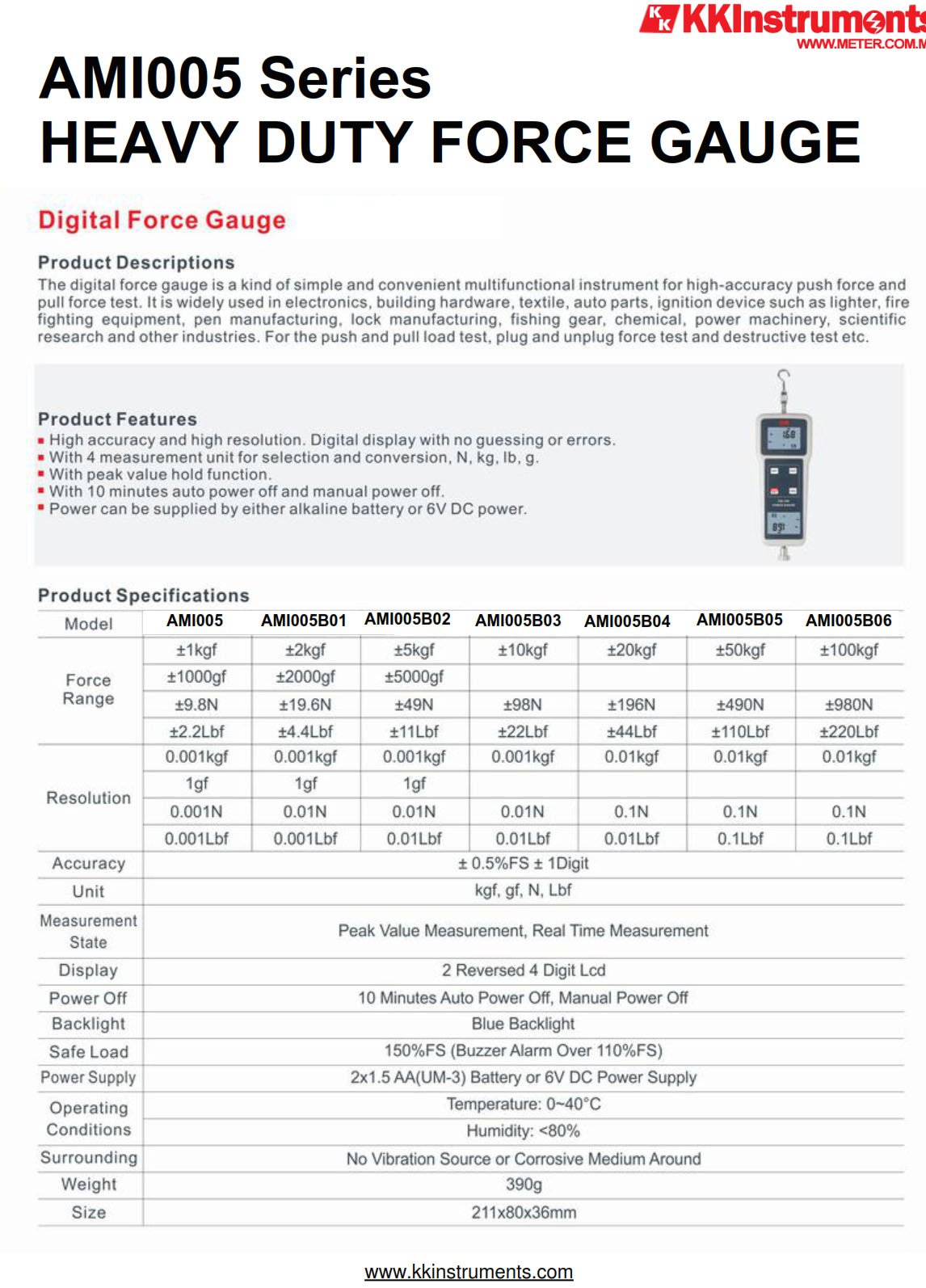

Product Parameters
|
Model |
AMI005 |
AMI005B01 |
AMI005B02 |
AMI005B03 |
AMI005B04 |
AMI005B05 |
AMI005B06 |
| Force Range |
±1kgf | ±2kgf | ±5kgf | ±10kgf | ±20kgf | ±50kgf | ±100kgf |
| ±1000gf | ±2000gf | ±5000gf | |||||
| ±9.8N | ±19.6N | ±49N | ±98N | ±196N | ±490N | ±980N | |
| ±2.2Lbf | ±4.4Lbf | ±11Lbf | ±22Lbf | ±44Lbf | ±110Lbf | ±220Lbf | |
| Resolution | 0.001kgf | 0.001kgf | 0.001kgf | 0.001kgf | 0.01kgf | 0.01kgf | 0.01kgf |
| 1gf | 1gf | 1gf | |||||
| 0.001N | 0.01N | 0.01N | 0.01N | 0.1N | 0.1N | 0.1N | |
| 0.001Lbf | 0.001Lbf | 0.01Lbf | 0.01Lbf | 0.01Lbf | 0.1Lbf | 0.1Lbf | |
| Accuracy | ± 0.5%FS ± 1Digit | ||||||
| Unit | kgf, gf, N, Lbf | ||||||
| Measurement State | Peak Value Measurement, Real Time Measurement | ||||||
| Display | 2 Reversed 4 Digit LCD | ||||||
| Power Off | 10 Minutes Auto Power Off, Manual Power Off | ||||||
| Backlight | Blue Backlight | ||||||
| Safe Load | 150%FS (Buzzer Alarm Over 110%FS) | ||||||
| Power Supply |
2x1.5 AA(UM-3) Battery or 6V DC Power Supply | ||||||
| Operating Conditions | Temperature: 0~40°C | ||||||
| Humidity:<80% | |||||||
| Surrounding | No Vibration Source or Corrosive Medium Around | ||||||
| Weight | 390g | ||||||
| Size | 211x80x36mm | ||||||

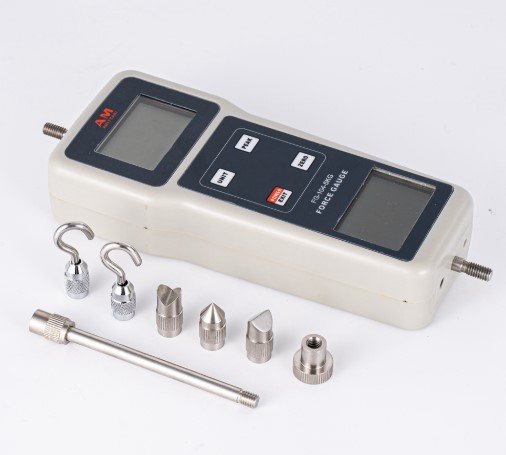

Product Accessories
|
Standard Accessories |
Digital Force Gauge |
|
| Pulling Hook | ||
| Flat Tip | ||
| Cone Tip | ||
| V-shaped Groove Tip | ||
| V-shaped Wedge Tip | ||
| Lengthening Connection Rod | Screw Rod | |
| Cap Nut | ||
| Manual | ||
| Carrying Case | ||
| Optional Accessories | Power Adapter | |

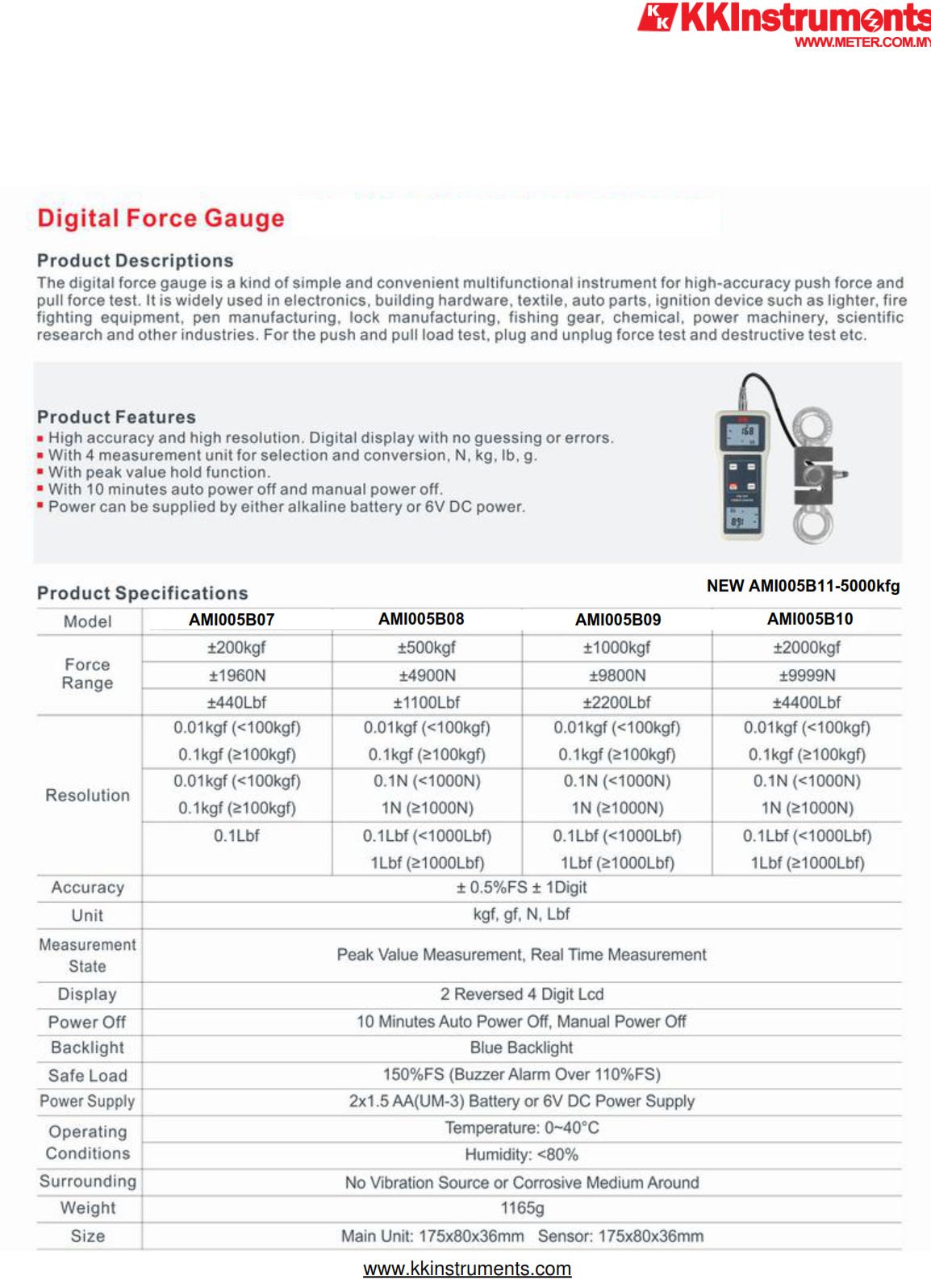

AMI005B07
*200KGF,1960N,440Lbf
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
AMI005B08
*500KGF,4900N,1100Lbf
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
AMI005B09
*1000KGF,9800N,2200Lbf
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
AMI005B10
*2000KGF,9999N,4400Lbf
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
AMI005B11
*5000KGF,N/Lbf
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
